Box Model

BOX Model

Topics : Box Model, height/width, display, commonly used properties, psuedo class and element.

  1. Every html element is interpreted as box by CSS.

  2. Each element passes these layers of box > content , padding, border, margin(not part of element, space between boxes).

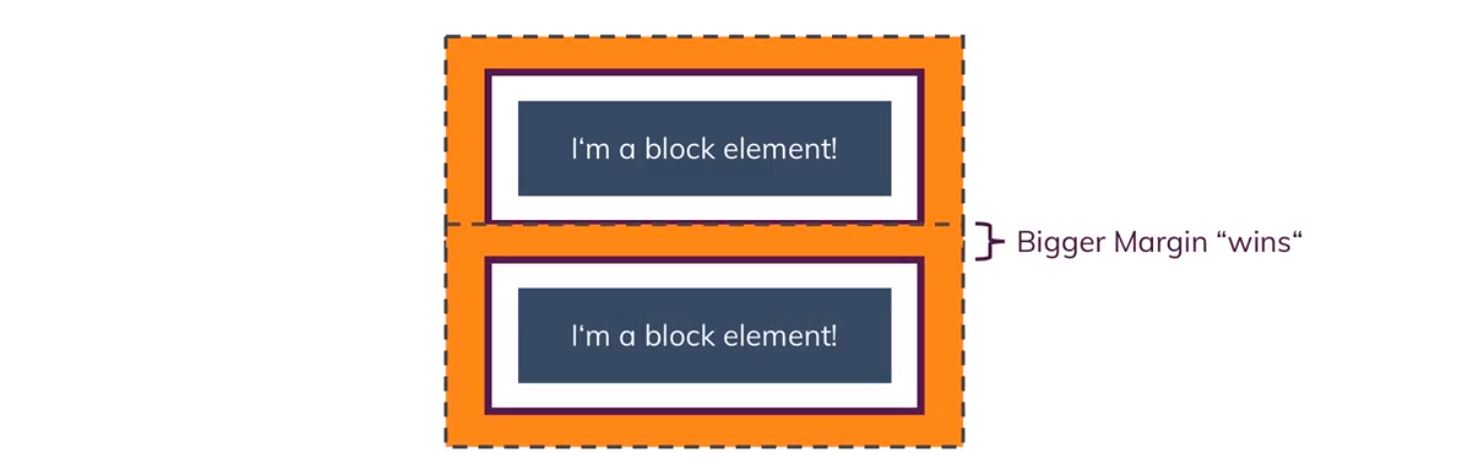

  3. margin collapse: img if we are worry about magin collapsing then use margin-top and margin-bottom margin collapse more

  4. width

  5. Block element : takes will width by default width :100% + new line.

    1. eg : <div> , <section> , <article> , <nav>, <h1> , <h2>, <p>
    2. They are rendered as a block and hence take up all the available horizontal space.
    3. can set margin-top and margin-bottom.

  6. inline element :

    1. Take up the space they require to fit their content in. Hence two inline-elements will fit into the same line
    2. margin-top / margin-down : have no effect.

  7. block-inline element : merge both behaviour.

  8. none : will be part of DOM, but non-visible.

more

  1. Height:

HTML > body > main > section > h1 - height of - body,main,section are calcalated dynamically based on their children. - if h1 height is 100%, its 100 % of section --> no change in h1 height - if we change height of main/section to 500px (absolute value) --> see change in h1 height - if we change height of main/section to 100% --> no change in h1 height

  • html take the height of full window > delegate this value down to h1 > just keep height: 100% in all element

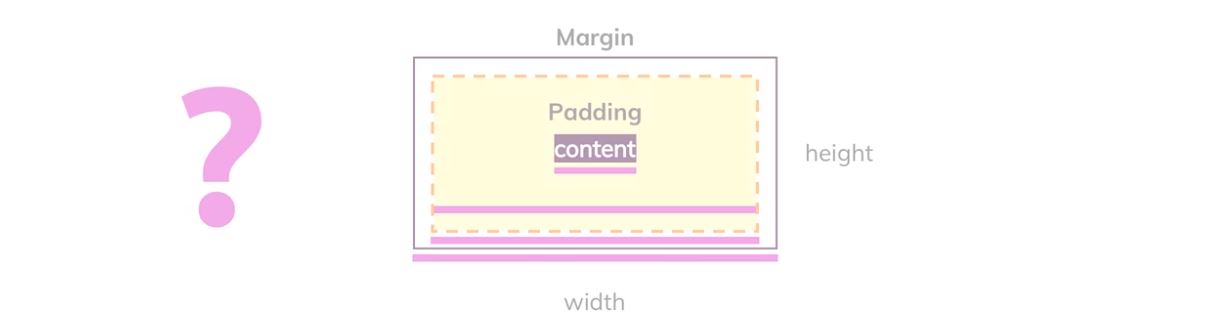

  • content-model img

box-sizing property --> values : content-box, border-box.

  • every element has its own defauly box-sizing mechanism.

    content-box : height and width will be calculated content.

border-box : height and width will be calculated content+padding+border.

  • browser calculates actual height and width before rendering element.

if box-sizing is content-box -->

  • actual height = height property + padding + border + margin.
  • actual Width = height property + padding + border + margin.

if box-sizing is border-box -->

  • actual height = height property( includes padding + border) + margin.
  • actual Width = height property(includes padding + border ) + margin.
* {box-sizing : border-box }

program : - create h1 and added all 3 layers and inpect it dev-tool. - browser default : body has 8px margin. Clear it. - h1 adds default top/bottom margin. h1 is block elememt hence take full width. width :100% no diff, width : 50% can see diff.
