redux

• NgRx is a reactive state management library for Angular applications

A. intro

• state management pattern inspired by Flux but simplified.
• 3 core principle
• Single source of truth: The entire application state is stored in one object tree (the store)
• State is read-only: The only way to change state is by emitting an action
• Changes are made with pure functions: Reducers specify how state changes in response to actions

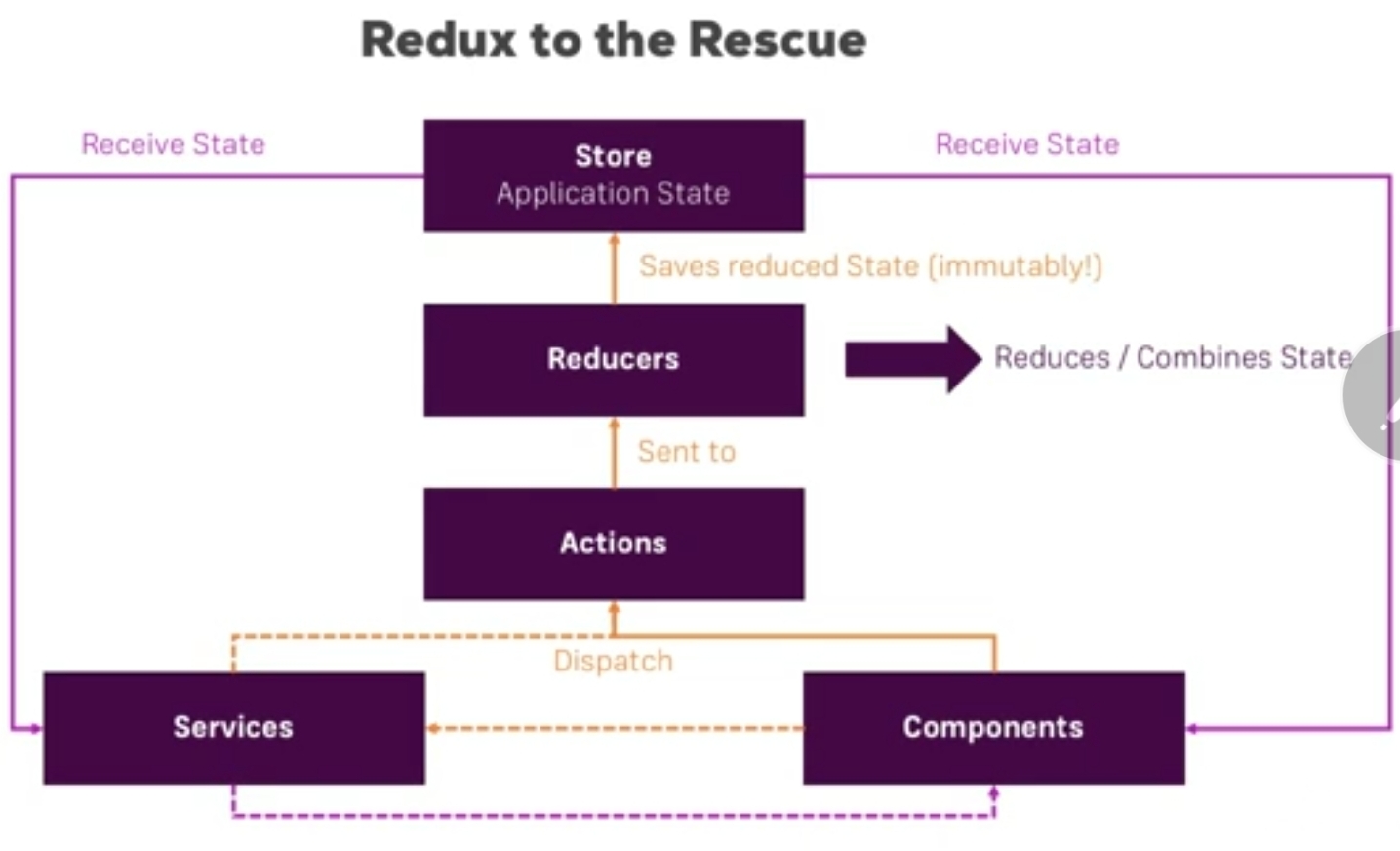

B. Components

Store:      The single source of truth for application state
Actions:    Describe state changes
Reducers:   Pure functions that handle state transitions
Selectors:  Pure functions for querying the store
Effects:    Handle side effects (like API calls)

B.1 Effect

• https://chat.deepseek.com/a/chat/s/6f5f7c58-5281-4f57-9f01-af30d5c34007

concept

** Without side effects:**

  Without side effects
  User clicks "Add to Cart" button
  Action dispatched: ADD_TO_CART
  Reducer updates local cart state
  Done

** With side effects:**

  User clicks "Add to Cart" button
  Action dispatched: ADD_TO_CART
  Reducer updates local cart state
  Side effect kicks in:
    Makes API call to update server-side cart
    On success: dispatches ADD_TO_CART_SUCCESS
    On failure: dispatches ADD_TO_CART_FAILURE
  Reducer handles success/failure to update UI state (loading spinner, error message)

** Without side effects:**

LoginButtonClick → LoginAction → authReducer updates state to { loggingIn: true }
→ UI shows spinner → [WHO STOPS SPINNER - WHO CALLS THE API?]

** With side effects:**

LoginButtonClick → LOGIN_ACTION
├─→ authReducer sets { loggingIn: true } // without validation to backend
└─→ LoginEffect sees LOGIN_ACTION
   → Makes API call
   → On success: dispatches LoginSuccessAction
   → On failure: dispatches LoginFailureAction

code example

// ==== cart.actions.ts ===

import { createAction, props } from '@ngrx/store';
import { Product } from '../models/product';

// Regular action (handled by reducer)
export const addToCart = createAction(  '[Cart] Add to Cart',  props<{ product: Product }>());

// Success action (dispatched by effect)
export const addToCartSuccess = createAction(  '[Cart] Add to Cart Success',  props<{ product: Product }>());
// Failure action (dispatched by effect)
export const addToCartFailure = createAction(  '[Cart] Add to Cart Failure',  props<{ error: string }>());

//  ==== cart.effects.ts ===

import { Injectable } from '@angular/core';
import { Actions, createEffect, ofType } from '@ngrx/effects';
import { CartService } from '../services/cart.service';
import { addToCart, addToCartSuccess, addToCartFailure } from './cart.actions';
import { catchError, map, mergeMap } from 'rxjs/operators';

@Injectable()
export class CartEffects {
  addToCart$ = createEffect(() =>
    this.actions$.pipe(
      ofType(addToCart), // ← Only addToCart actions pass through
      // This code only runs for addToCart actions
      mergeMap(action =>
        this.cartService.addToCartAPI(action.product).pipe(
          map(product => addToCartSuccess({ product })),
          catchError(error => of(addToCartFailure({ error: error.message })))
        )
      )
    )
  );

  constructor(
    private actions$: Actions,
    private cartService: CartService
  ) {}
}

// ========= reducer =======

const initialState: CartState = {  items: [],  loading: false,  error: null};

export const cartReducer = createReducer(
  initialState,

  on(addToCart, state => ({ ...state, loading: true })),

  on(addToCartSuccess, (state, { product }) => ({
    ...state,
    items: [...state.items, product],
    loading: false
  })),

  on(addToCartFailure, (state, { error }) => ({
    ...state,
    error,
    loading: false
  }))
);

---

C. developer Guide

C.1. install NgRx Packages

ng add @ngrx/store@latest
ng add @ngrx/store-devtools@latest
ng add @ngrx/effects@latest
ng add @ngrx/schematics@latest

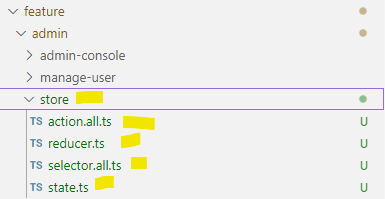

C.2. project Context

src/
├── app/
│   ├── core/
│   ├── feature/
│   │   ├── admin/
│   │   │   ├── state/
│   │   │   │   ├── admin.actions.ts
│   │   │   │   ├── admin.reducer.ts
│   │   │   │   ├── admin.selectors.ts
│   │   │   │   └── admin.state.ts
│   │   │   ├── admin.module.ts
│   │   │   └── components/
│   │   ├── feature2/
│   │   │   ├── state/
│   │   │   └── ...
│   ├── shared/
│   ├── reducer/index.ts  --> #1 app core state | "ng add @ngrx/store@latest" command created this file <<<
│   └── app.module.ts --> #2 Register core, features(admin,feature-2,etc), shared, etc all modules

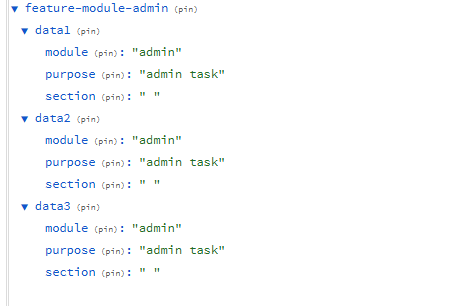

- final state will look like this (redux store)

---

1 :: create - App store

• app.module.ts - import : [ StoreModule.forRoot({}), StoreDevtoolsModule.instrument() ]
• ng add @ngrx/store@latest
• auto create - reducer/index.ts
• interface AppState {} -- keep it empty
• ActionReducerMap = {} -- keep it empty

  import {   ActionReducerMap,  MetaReducer} from '@ngrx/store';
  import environment from '../../environments/environment';

  export interface AppState {}
  export const reducers: ActionReducerMap<AppState> = {};
  export const metaReducers: MetaReducer<AppState>[] = !environment.production ? [] : [];


2 :: create - feature store

2.1 State.ts

• interface : FeatureAdminState

  export interface FeatureData1 {        module: String        purpose: string        section: string    }
  export interface FeatureData2 {        module: String        purpose: string        section: string    }
  export interface FeatureData3 {        module: String        purpose: string        section: string    }

  export interface FeatureAdminState {
      "data1": FeatureData1,
      "data2": FeatureData2,
      "data3": FeatureData3
  }


---

2.2 ActionReducerMap

• featureStateName: string = 'feature-module-admin'
• featureAdminReducerStateMap: ActionReducerMap<FeatureAdminState>
• notice: reducer/s : featureData1_Reducer, featureData2_Reducer, featureData3_Reducer
• functions to set initial value
• update state data by action
• featureData1_Reducer will update only - FeatureData1, and so on.

import { ActionReducerMap } from '@ngrx/store';
import { featureData1_Reducer, featureData2_Reducer, featureData3_Reducer } from './reducer';

export const featureStateName = 'feature-module-admin';
export const featureAdminReducerStateMap: ActionReducerMap<FeatureAdminState> = {
    "data1": featureData1_Reducer,
    "data2": featureData2_Reducer,
    "data3": featureData3_Reducer
};

---

2.3 Action (class)

• naming conventions like [Source] Event

  import { Action } from '@ngrx/store';
  import { FeatureData1, FeatureData2, FeatureData3 } from './state';

  export enum FeatureAdminActionTypes {
      ActionLoadData1 = '[feature admin ] ActionLoadData1 Action' ,
      ActionLoadData2 = '[feature admin ] ActionLoadData2 Action' ,
      ActionLoadData3 = '[feature admin ] ActionLoadData3 Action'
  };

  export class FeatureAdmin_LoadData1_Action implements Action
  {
      readonly type = FeatureAdminActionTypes.ActionLoadData1;
      payload : FeatureData1
      constructor(private d: FeatureData1) {this.payload = d;}
  }

  export class FeatureAdmin_LoadData2_Action implements Action
  {
      readonly type = FeatureAdminActionTypes.ActionLoadData2;
      payload : FeatureData2
      constructor(private d: FeatureData2) {this.payload = d;}
  }

  export class FeatureAdmin_LoadData3_Action implements Action
  {
      readonly type = FeatureAdminActionTypes.ActionLoadData3;
      payload : FeatureData3
      constructor(private d: FeatureData3) {this.payload = d;}
  }


---

2.4 Reducer (function)

• initial state
• update state
• Immutability : Always return new state objects in reducers rather than mutating existing state

  import { FeatureAdminActionTypes  } from './action.all';
  import { FeatureData1,FeatureData2,FeatureData3 } from './state';

  const initialState = {
          module: "admin",
          purpose: "admin task",
          section: " "
  };

  export function featureData1_Reducer(state :FeatureData1 = initialState, action: any): FeatureData1
  {
      switch (action.type)
      {
        case FeatureAdminActionTypes.ActionLoadData1 : return {...state, section: "data 1"};

        default: return state;
      }
  }

  export function featureData2_Reducer(state :FeatureData2 = initialState, action: any): FeatureData2
  {
      switch (action.type)
      {
        case FeatureAdminActionTypes.ActionLoadData2 : return {...state, section: "data 2"};

        default: return state;
      }
  }

  export function featureData3_Reducer(state :FeatureData2 = initialState, action: any): FeatureData3
  {
      switch (action.type)
      {
        case FeatureAdminActionTypes.ActionLoadData3 : return {...state, section: "data 3"};

        default: return state;
      }
  }


---

2.5 Selector + Obseravble

• create small, focused selectors and compose them for more complex queries

  import { createFeatureSelector, createSelector } from '@ngrx/store';
  import { FeatureAdminState } from './state';

  export const featureAdminState = createFeatureSelector<FeatureAdminState>('counter');

    export const selectdata1 = createSelector(  featureAdminState,  (state) => state.data1);
    export const selectdata2 = createSelector(  featureAdminState,  (state) => state.data2);
    export const selectdata3 = createSelector(  featureAdminState,  (state) => state.data3);

   const data1$ = this.store.select(selectdata1);
   const data2$ = this.store.select(selectdata2);
   const data3$ = this.store.select(selectdata3);


---

2.6 StoreModule.forFeature()

• StoreModule.forFeature('feature-module-admin', featureAdminReducerStateMap),

  @NgModule({
    imports: [
      CommonModule, AdminRoutingModule, SharedModule,
      StoreModule.forFeature(featureStateName, featureAdminReducerStateMap),
    ],
    exports: [AdminRoutingModule],
    declarations: [AdminConsoleComponent, ManageUserComponent]
  })
  export class AdminModule { }


---

2.7 Dispatch Action

import { Store } from '@ngrx/store';

constructor(private store: Store) {}

payload = { ... }
this.store.dispatch(new FeatureAdmin_LoadData2_Action({ payload }));

---

C.3 New Syntax

Action

==== Action ====
import { createAction, props } from '@ngrx/store';

export const reset = createAction('[Counter] Reset');

payload: Counter = {};
export const setValue = createAction('[Counter] Set Value',  props<payload>() );

Reducer

import { createReducer, on } from '@ngrx/store';
import * as CounterActions from './counter.actions';
import { CounterState, initialState } from './counter.state';

export const counterReducer = createReducer(
  initialState,
  on(Action1, (state) => ({...state, prop_1="new-value"  })),
  on(Action2, (state) => ({...state, prop_2="new-value"  })),
  ...
);
