Routing Module

  • https://chat.deepseek.com/a/chat/s/ad1409fe-ed2f-496b-9086-fa09fd88a585

A. Intro : Routing

1. Browser - navigation model

  • visit multiple url
  • navigate links
  • everything's comes to Browser History
  • back and forward buttons
  • But, angular application is SPA and every time application remains in same page
  • how to write browser history? - sol: RouterModule

2. Ng RouterModule

  • npm i @angular/router (add explicitly)
  • visit/navigate b/w views in ng-app
  • RouterModule, writes to browser-history about view/s navigation
  • routing rule
  • path1 --> module
    • path1/sub-path-1 ===> component-1
    • path1/sub-path-2 ===> component-2
    • ...
  • path2 --> ...
  • ...
  • capability to transfer data while routing
  • path param, parameter, queryParam, fragment
  • Fetch these async or sync.
  • Navigation :
  • declarative
    • < a [routerLink]="['url1', 'p1','p2']" / >
    • < a routerLink="url1" [RouterActiveLink]="active" [RouterActiveLinkOption]="{exact:true}" / >
    • if path is start with / then routerLink directive will take it absolute path, else relative
  • programmatically (Service/s : Router + ActivatedRoute )
    • srv.navigate(['url1','p1','p2'])
    • absolute/relative
    • singleton instance of srv
    • first-match wins strategy on routesObj: Route[] 👈
    • RouterModule.forRoot (routesObj, { enableTracing: true }) 👈
    • displays the mapped component on Router-Outlet directive on view.
    • placeholder for mapped component

3. more topics

  • Lazy loading of module/component with routing. check below prg
  • routing Gaurd
  • control navigation to and from routes

  • Types:

    • CanActivate - Controls access to a route
    • CanActivateChild - Controls access to child routes
    • CanDeactivate - Controls navigation away from a route
    • CanLoad - Controls lazy-loaded module loading
    • Resolve - Pre-fetch data before route activation
    • returns : Observable | Promise | T

  • routing event : https://angular.io/guide/router#router-events

  • pending...

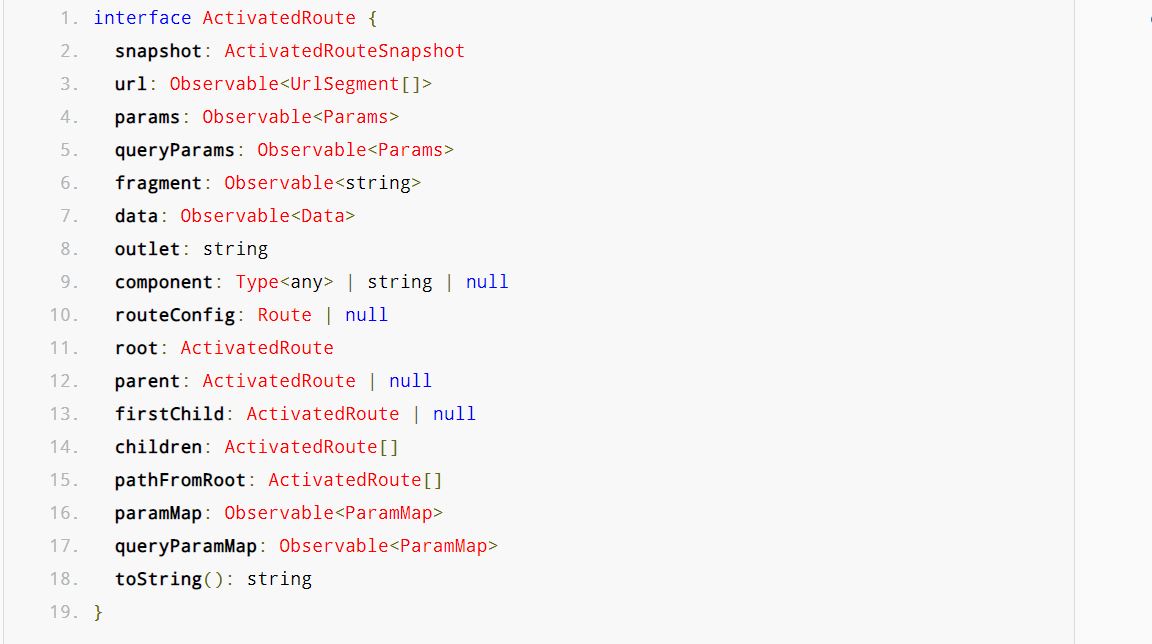

  • ActivatedRoute service

  • Router builds a tree of ActivatedRoute objects at the end each cycle.
  • Contains the information about a route associated with a component loaded in an outlet.
  • hence will have all info for current path.
  • img

B. Developer guide

1. Context:

root-module , path /app

feature-module-1 , path /app/f1/*
  - component-11, path : /app/f1/c11/:id  --pathParam <<<
  - component-12, path : .app/f1/c12

feature-module-2 , path /app/f2/*
  - component-21, path : /app/f2/c22
  - component-22, path : .app/f2/c23

Also
- want to laxy load module.
- pass data while loading - async and sync

2. Configure Routes

2.1 Root Module : app-routing.module.ts

import { NgModule } from '@angular/core';
import { RouterModule, Routes } from '@angular/router';

const routes: Routes = [
  {
    path: 'app',
    children: [
      {
        path: 'f1',
        canLoad: [FeatureGuard],
        loadChildren: () => import('./feature-module-1/feature-module-1.module').then(m => m.FeatureModule1Module),
        data: { syncData: 'Root sync data for Feature 1' }, // Synchronous data
        resolve: {
          asyncData: () => Promise.resolve('Root async data for Feature 1') // Asynchronous data
        }
      },
      {
        path: 'f2',
        loadChildren: () => import('./feature-module-2/feature-module-2.module').then(m => m.FeatureModule2Module),
        data: { syncData: 'Root sync data for Feature 2' },
        resolve: {
          asyncData: () => new Promise(resolve => {
            setTimeout(() => resolve('Root async data for Feature 2'), 1000);
          })
        }
      }
    ]
  },
  { path: '', redirectTo: '/app/f1/c11', pathMatch: 'full' }
];

@NgModule({
  imports: [RouterModule.forRoot(routes)],
  exports: [RouterModule]
})
export class AppRoutingModule { }

2.2 feature Module : feature-module-1-routing.module.ts

import { NgModule } from '@angular/core';
import { RouterModule, Routes } from '@angular/router';
import { Component11Component } from './component-11/component-11.component';
import { Component12Component } from './component-12/component-12.component';

const routes: Routes = [
  {
    path: '',
    children: [
      {
        path: 'c11',
        component: Component11Component,

        //=================
        // Gaurds
        //=================
        canActivate: [AuthGuard],
        canActivateChild: [AdminGuard],
        canDeactivate: [CanDeactivateGuard]

        data: { featureSyncData: 'Feature 1 sync data for C11' },
        resolve: {
          // featureAsyncData: () => Promise.resolve('Feature 1 async data for C11')
          //=================
          // Resolver
          //=================
          featureAsyncData:  UserResolver
        }
      },
      {
        path: 'c12',
        component: Component12Component,
        data: { featureSyncData: 'Feature 1 sync data for C12' },
        resolve: {
          featureAsyncData: () => new Promise(resolve => {
            setTimeout(() => resolve('Feature 1 async data for C12'), 1500);
          })
        }
      },
      { path: '', redirectTo: 'c11', pathMatch: 'full' }
    ]
  }
];

@NgModule({
  imports: [RouterModule.forChild(routes)],
  exports: [RouterModule]
})
export class FeatureModule1RoutingModule { }

2.3 feature Module : feature-module-2-routing.module.ts

import { NgModule } from '@angular/core';
import { RouterModule, Routes } from '@angular/router';
import { Component21Component } from './component-21/component-21.component';
import { Component22Component } from './component-22/component-22.component';

const routes: Routes = [
  {
    path: '',
    children: [
      {
        path: 'c21',
        component: Component21Component,
        data: { featureSyncData: 'Feature 2 sync data for C21' },
        resolve: {
          featureAsyncData: () => Promise.resolve('Feature 2 async data for C21')
        }
      },
      {
        path: 'c22',
        component: Component22Component,
        data: { featureSyncData: 'Feature 2 sync data for C22' },
        resolve: {
          featureAsyncData: () => new Promise(resolve => {
            setTimeout(() => resolve('Feature 2 async data for C22'), 2000);
          })
        }
      },
      { path: '', redirectTo: 'c21', pathMatch: 'full' }
    ]
  }
];

@NgModule({
  imports: [RouterModule.forChild(routes)],
  exports: [RouterModule]
})
export class FeatureModule2RoutingModule { }

2.4 Access Route Data

  • this.route.data.subscribe()
  • this.route.this.route.data.subscribe.subscribe()
    import { Component, OnInit } from '@angular/core';
import { ActivatedRoute } from '@angular/router';

@Component({
  selector: 'app-component11',
  template: `
    <h2>Component 11</h2>
    <p>Sync Data from Root: {{ rootSyncData }}</p>
    <p>Async Data from Root: {{ rootAsyncData }}</p>
    <p>Sync Data from Feature: {{ featureSyncData }}</p>
    <p>Async Data from Feature: {{ featureAsyncData }}</p>
  `
})
export class Component11Component implements OnInit {
  rootSyncData: any;
  rootAsyncData: any;
  featureSyncData: any;
  featureAsyncData: any;
  id: any; // from pathParam

  constructor(private route: ActivatedRoute) {}

  ngOnInit() {
    // ======== 1. Access parent (root) route data ========
    this.route.parent?.data.subscribe(data => {
      this.rootSyncData = data.syncData;
      this.rootAsyncData = data.asyncData;
    });

    // ======== 2. Access current route data ========
    this.route.data.subscribe(data => {
      this.featureSyncData = data.featureSyncData;
      this.featureAsyncData = data.featureAsyncData;
    });

    // ======== 3. path param ========
    this.Id = this.route.snapshot.paramMap.get('id');

    this.Id = this.route.paramMap.subscribe(params => {
      this.userId = params.get('id');
      this.postId = params.get('id2');
      ...
    });

    // ======= 4. queryParam ==========
   this.searchTerm = this.route.snapshot.queryParamMap.get('q');

   this.route.queryParamMap.subscribe(params => {
    this.currentPage = params.get('page');
   });

   // ========= 5. fragment ========
   this.section = this.route.snapshot.fragment;

   this.route.fragment.subscribe(fragment => {
    this.scrollToSection(fragment);
   });
  }
}

2.5 view

<!-- app.component.html -->
<div class="app-container">
  <h1>My Angular App</h1>
  <nav>
    <a routerLink="/app/f1/c11">Feature 1 - Component 11</a>
    <a routerLink="/app/f1/c12">Feature 1 - Component 12</a>
    <a routerLink="/app/f2/c21">Feature 2 - Component 21</a>
    <a routerLink="/app/f2/c22">Feature 2 - Component 22</a>
  </nav>

  <!-- This is where feature modules will be loaded -->
  <router-outlet></router-outlet>
</div>
  • optional: can create seperate component feature1-layout.component.html
    <!-- feature1-layout.component.html -->
<div class="feature1-container">
  <h2>Feature Module 1</h2>
  <div class="feature1-nav">
    <a routerLink="c11">Component 11</a>
    <a routerLink="c12">Component 12</a>
  </div>

  <!-- This is where Component11 and Component12 will be displayed -->
  <router-outlet></router-outlet>
</div>

2.6 Gaurd

  • create
//======= 1 FeatureGuard - CanLoad  ===========
@Injectable({  providedIn: 'root'})
export class FeatureGuard implements CanLoad {
  constructor(private authService: AuthService, private router: Router) {}

  canLoad(
    route: Route,
    segments: UrlSegment[]): Observable<boolean> | Promise<boolean> | boolean {

    if (this.authService.hasFeatureAccess(route.path)) {
      return true;
    }

    this.router.navigate(['/access-denied']);
    return false;
  }
}
  • CanActivate, CanActivateChild
    //======= 2 CanActivate ===========

@Injectable({  providedIn: 'root'})
export class AuthGuard implements CanActivate
{
  constructor(private authService: AuthService, private router: Router) {}

  @override
  canActivate(
    next: ActivatedRouteSnapshot,
    state: RouterStateSnapshot): Observable<boolean | UrlTree> | Promise<boolean | UrlTree> | boolean | UrlTree
  {
    if (this.authService.isLoggedIn()) {      return true;    }
    else { // Redirect to login page }
  }
}

// ========== 3 CanActivateChild =========

@Injectable({  providedIn: 'root'})
export class AdminGuard implements CanActivateChild
{
  canActivateChild(
    childRoute: ActivatedRouteSnapshot,
    state: RouterStateSnapshot): Observable<boolean | UrlTree> | Promise<boolean | UrlTree> | boolean | UrlTree
    {
    console.log('Checking admin access for child route');
    return true;
   }
}

//======= 4 CanDeactivate<CanComponentDeactivate> ===========

export interface CanComponentDeactivate {
  canDeactivate: () => Observable<boolean> | Promise<boolean> | boolean;
}

@Injectable({  providedIn: 'root'})
export class CanDeactivateGuard implements CanDeactivate<CanComponentDeactivate> {
  canDeactivate(
    component: CanComponentDeactivate,
    currentRoute: ActivatedRouteSnapshot,
    currentState: RouterStateSnapshot,
    nextState?: RouterStateSnapshot): Observable<boolean> | Promise<boolean> | boolean {

    return component.canDeactivate ? component.canDeactivate() : true;
  }
}

//======= 5 Resolve ===========

@Injectable({  providedIn: 'root'})
export class UserResolver implements Resolve<User>
{
  constructor(private userService: UserService) {}

  resolve(
    route: ActivatedRouteSnapshot,
    state: RouterStateSnapshot): Observable<User> | Promise<User> | User {

    return this.userService.getUser(route.paramMap.get('id'));
  }
}
  • apply : on route[]
    canActivate: [AuthGuard],
canActivateChild: [AdminGuard]
canDeactivate: [CanDeactivateGuard]
canLoad: [FeatureGuard],
resolve: { data1 : UserResolver  }

2.7 navigate

  • path, having pathParam : /app/f1/c11/:id

    // Using routerLink in template
<a [routerLink]="['/app', 'f1' , 'c11', id, { body-attri-1: '1', body-attri-2: '2'} ]"
   [queryParams]="{q: searchTerm, page: 1}"
   fragment="section-2">
 Link1
</a>

  • Programmatically in component:

    this.router.navigate(
  ['/app', 'f1' , 'c11', id, { body-attri-1: '1', body-attri-2: '2'}  ],  //pathparam - id
  {
      queryParams: {       q: this.searchTerm,    page: this.currentPage   },
      fragment: 'section-3'
      relativeTo: this.route
  }
 );
